Xtreme Series
Portable & Heavy-Duty Grinding Machines
Xtreme Series
Solution for centreless grinding

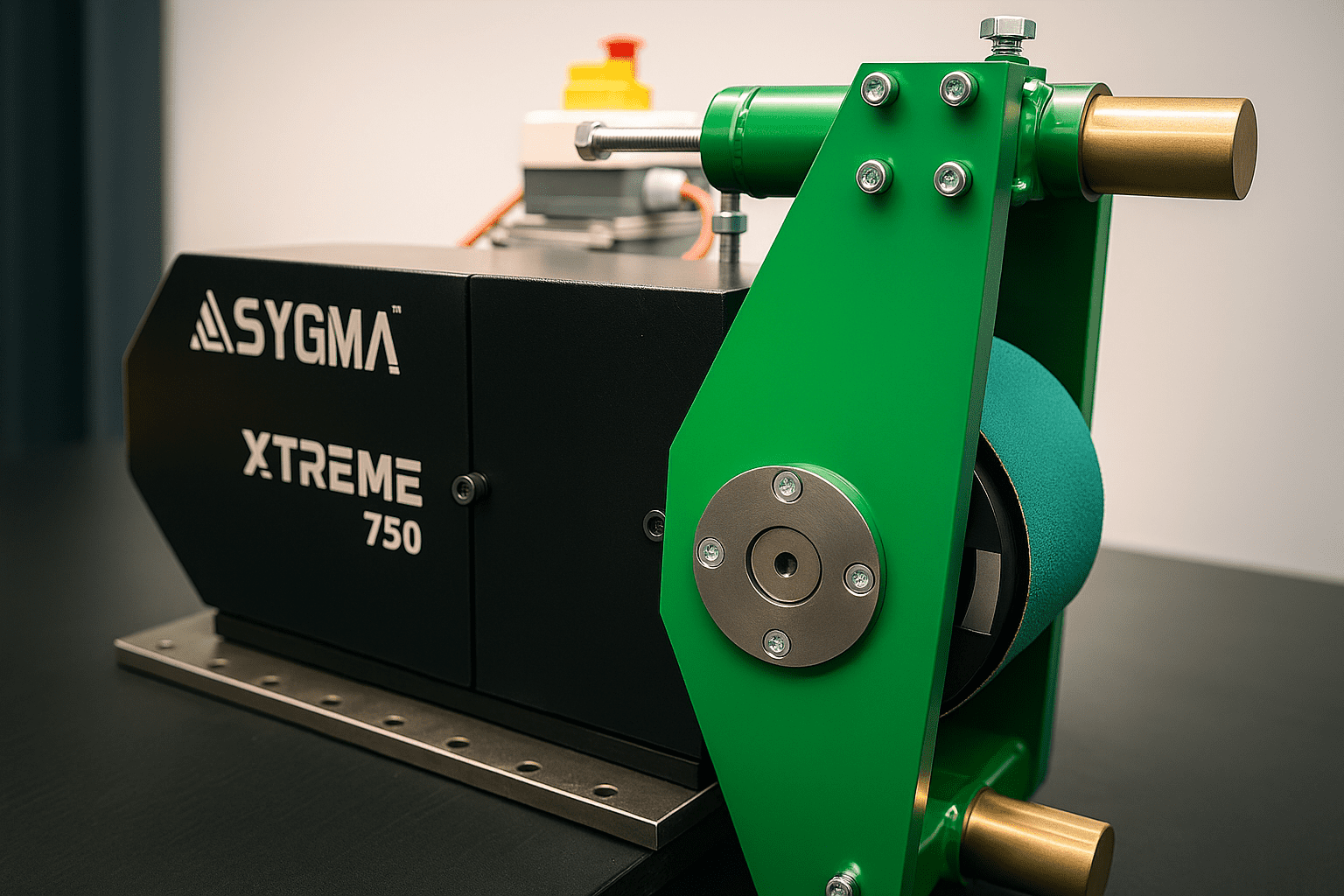

Xtreme 750
The Sygma™ Xtreme 750 is designed and built for tough applications in cement plants, chemical plants, steel mills, sugar mills and mining companies where reliable equipment is critical. The linear track is available in manual or automatic feed system.

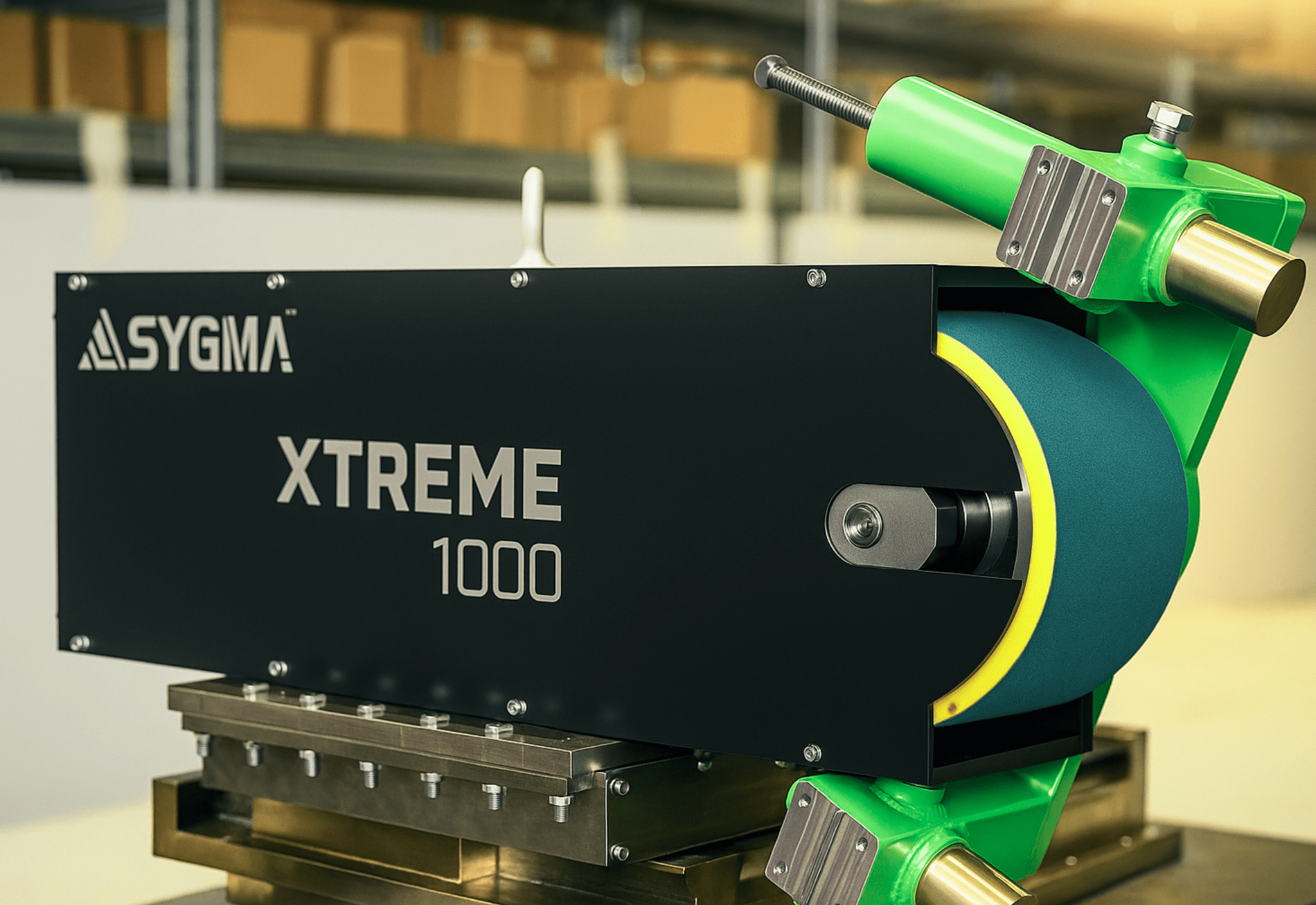

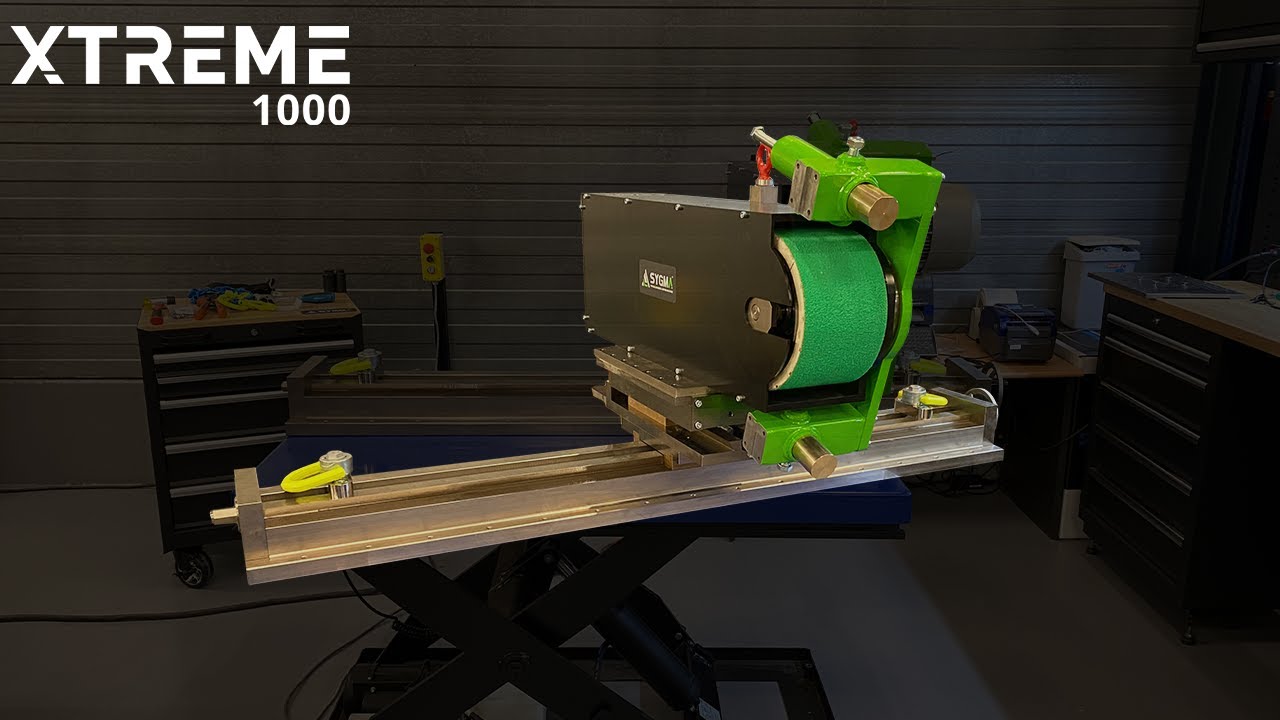

Xtreme 1000
The Sygma™ Xtreme 1000 is engineered for demanding applications in cement plants, chemical plants, steel mills, sugar mills, and mining operations, where dependable equipment is critical. This model features a powerful 5.5 kW drive motor, ensuring robust performance and reliability in the toughest industrial environments.
Technical Specifications
Xtreme 750 & Xtreme 1000
Same machine, same options, same performance. The only difference is the working length. Every feed system and every voltage is available on both models.
Compact Capacity
Xtreme 750
Working length
750 mm
Extended Capacity
Xtreme 1000
Working length
1000 mm
Manual Feed System
Available on both the Xtreme 750 and Xtreme 1000.
| Feature | Specification | Xtreme 750 | Xtreme 1000 |
|---|---|---|---|
| Manual Feed | 4 mm / revolution | ✓ | ✓ |
Automatic Feed System
Available with multiple motor and voltage configurations.
| Feature | Specification | Xtreme 750 | Xtreme 1000 |
|---|---|---|---|
| Automatic Feed | 4 mm / revolution | ✓ | ✓ |
| 2-Phase 230 V | Servo drive — 29 Nm nominal torque | ✓ | ✓ |
| 3-Phase 400 V | Servo drive — 45 Nm nominal torque | ✓ | ✓ |
| AC configuration with end switch | Included on every variant of the automatic feed system | ✓ | ✓ |
Note:
All automatic feed configurations are interchangeable across both machine sizes.
In short
- ✓ Identical features on Xtreme 750 and Xtreme 1000.
- ✓ Manual and Automatic Feed available on both models.
- ✓ Automatic Feed available in 230 V and 400 V.
- ✓ Only the working length differs: 750 mm vs 1000 mm.

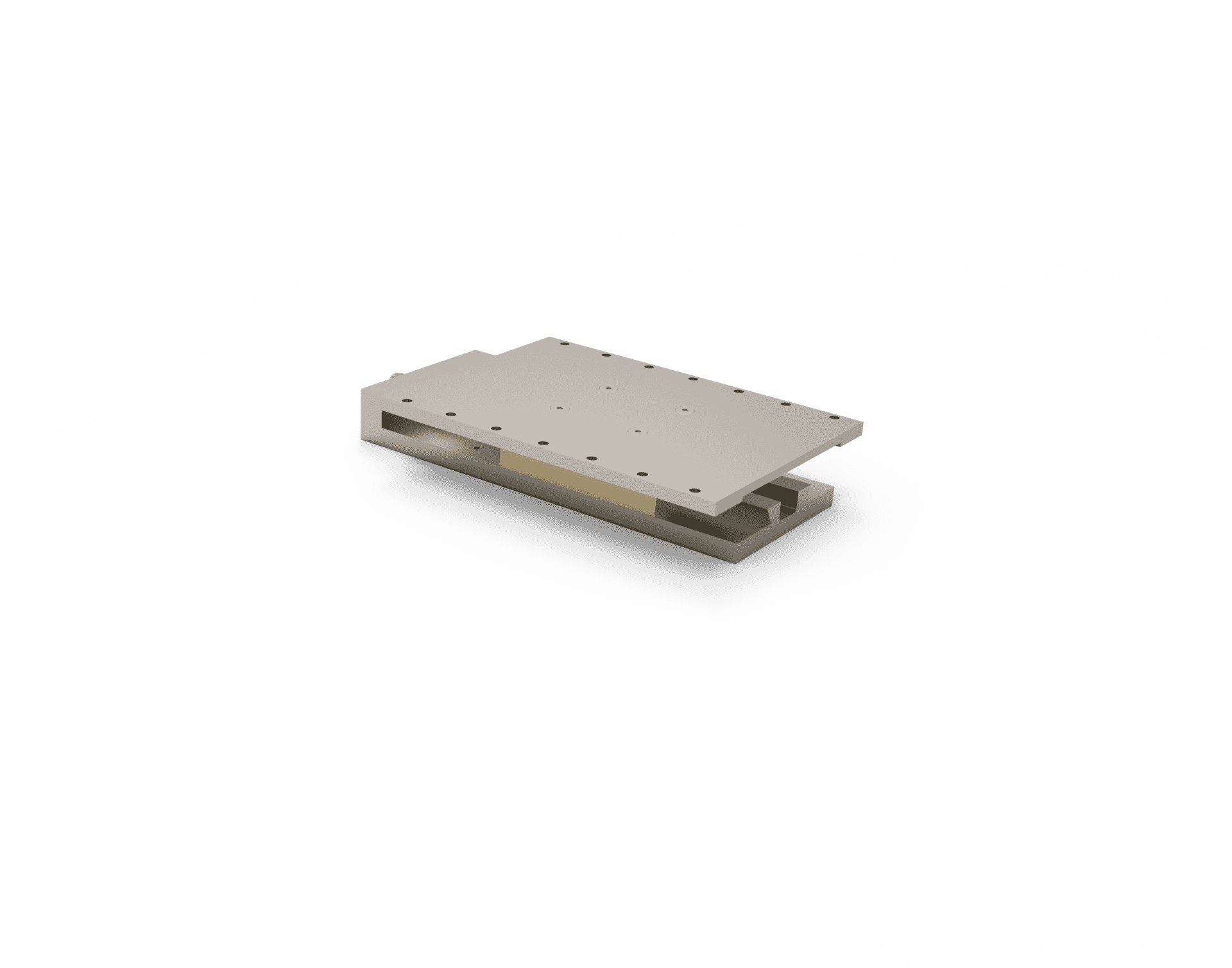

Optional Configuration
Optional Configuration
32.5 kg
70.5 kg
44 kg

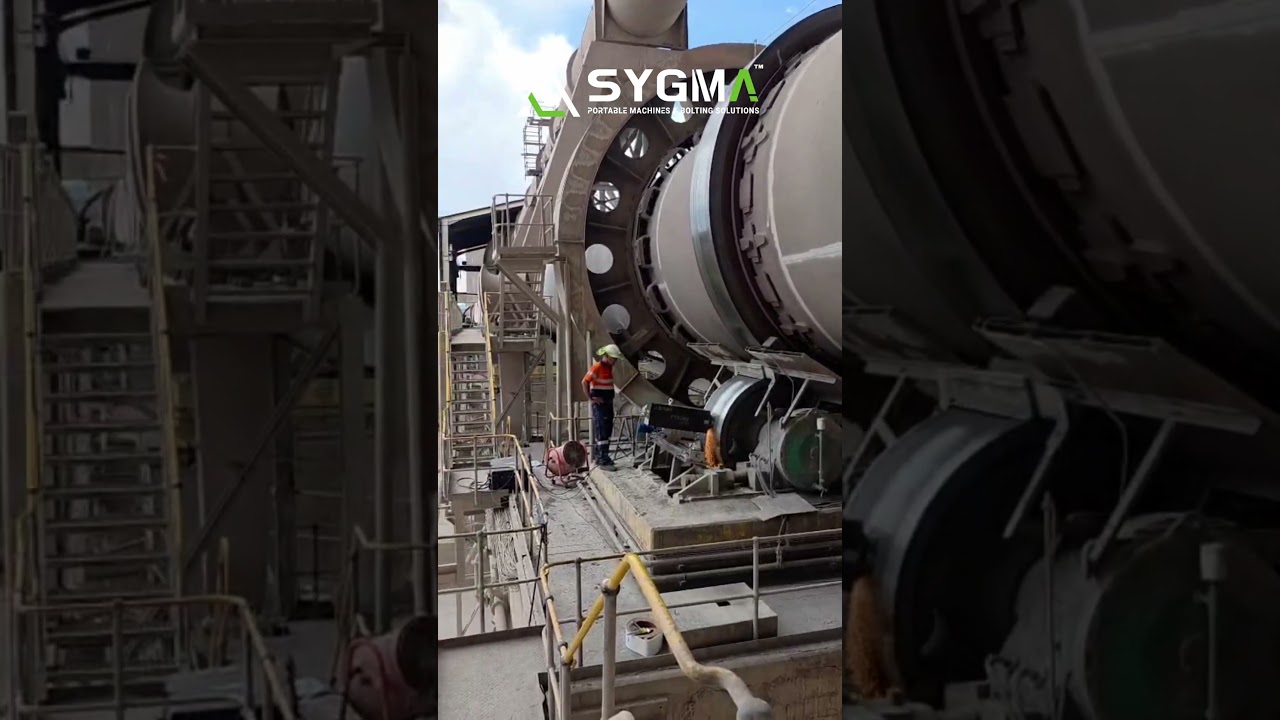

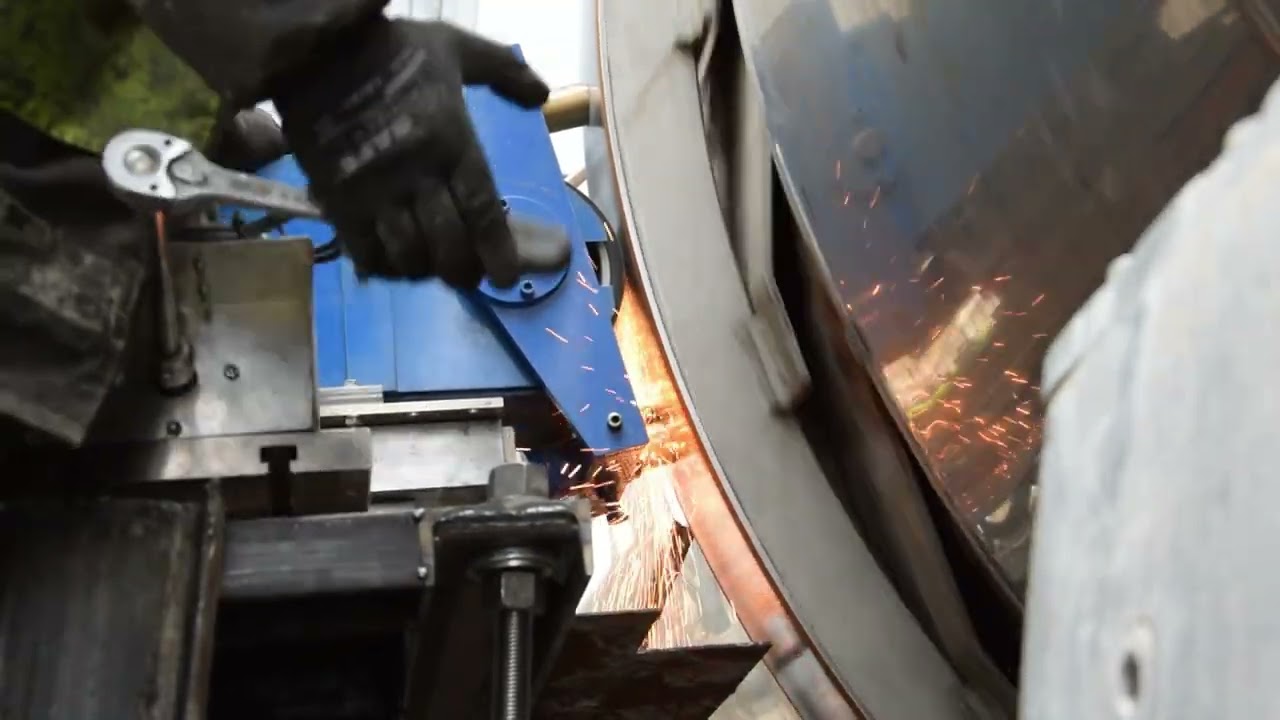

Check out the Xtreme Series videos and see our machines in action.
