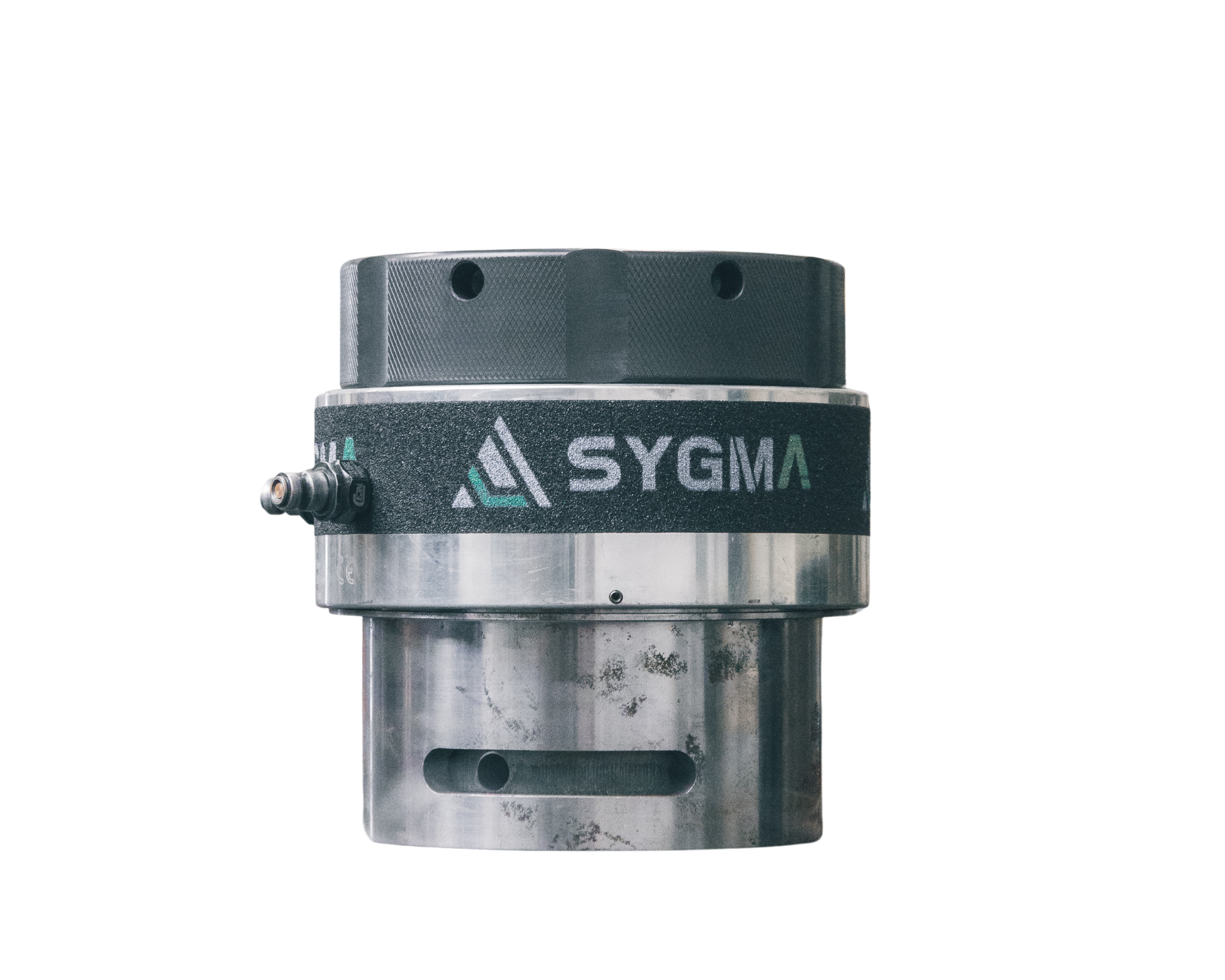

Xtens Series
Bolt Tensioning
Solution for bolt tensioning
The Sygma™ Xtens specializes in advanced bolting tensioning solutions, providing both standard and custom products to meet the precise needs of various industries. Our tensioning systems are designed to ensure accurate, efficient, and safe application of tension in bolted joints.
Key Features
Xtens Tensioning Solutions
Spring Return Tensioners: Automatically returning tensioners for quick repositioning.
Customer Tensioner Designs: Custom solutions for specific tensioning needs.
Double Deck / Wind Tensioners: Robust tensioners for wind energy applications.
Standard & Custom Tensioning Pumps: Reliable pumps for hydraulic tensioning.
Tensioning Hoses: Durable hoses for safe hydraulic fluid transfer.
| Load Cell | XTS | Tool Load | Bolt Size | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Imperial | Metrics | ||||||||
| Name Load Cell | Ref Loadcell | kN | Lbs | Inch | Ref Adaptor Kit | Ref Puller | Dimensions (Metric) | Ref Adaptor Kit | Ref Puller |
| TSR 0 | XTS0000 | 160 | 35969,431019 | ¾” | XTS0003 | XTS0023 | M20 | XTS0001 | XTS0021 |
| ⅞” | XTS0004 | XTS0024 | M22 | XTS0002 | XTS0022 | ||||
| TSR 1 | XTS0100 | 280 | 62946,504284 | 1” | XTS0103 | XTS0123 | M24 | XTS0101 | XTS0121 |
| — | — | — | M27 | XTS0102 | XTS0122 | ||||
| 1⅛” | XTS0104 | XTS0124 | M30 | — | — | ||||
| TSR 2 | XTS0200 | 454,4 | 102153,184095 | 1” | XTS0206 | XTS0226 | M24 | XTS0201 | XTS0221 |
| 1⅛” | XTS0207 | XTS0227 | M27 | XTS0202 | XTS0222 | ||||
| 1¼” | XTS0208 | XTS0228 | M30 | XTS0203 | XTS0223 | ||||
| 1⅜” | XTS0209 | XTS0229 | M33 | XTS0204 | XTS0224 | ||||
| — | — | — | M36 | XTS0205 | XTS0225 | ||||
| TSR 3 | XTS0300 | 670 | 150621,992394 | 1¼” | XTS0305 | XTS0325 | M33 | XTS0301 | XTS0321 |
| — | XTS0306 | XTS0326 | M36 | XTS0302 | XTS0322 | ||||
| 1½” | XTS0307 | XTS0327 | M39 | XTS0303 | XTS0323 | ||||
| 1⅝” | XTS0308 | XTS0328 | M42 | XTS0304 | XTS0324 | ||||
| TSR 4 | XTS0400 | 1000 | 224808,943871 | 1½” | XTS0405 | XTS0425 | M39 | XTS0401 | XTS0421 |
| 1⅝” | XTS0406 | XTS0426 | M42 | XTS0402 | XTS0422 | ||||
| 1¾” | XTS0407 | XTS0427 | M45 | XTS0403 | XTS0423 | ||||
| 1⅞” | XTS0408 | XTS0428 | M48 | XTS0404 | XTS0424 | ||||
| 2” | XTS0409 | XTS0429 | — | — | — | ||||
| 2” | XTS0508 | XTS0528 | M52 | XTS0501 | XTS0521 | ||||
| TSR 5 | XTS0500 | 1550 | 348453,86299 | 2¼” | XTS0509 | XTS0529 | M56 | XTS0502 | XTS0522 |
| — | — | — | M60 | XTS0503 | XTS0523 | ||||
| 2½” | XTS0510 | XTS0530 | M64 | XTS0504 | XTS0524 | ||||
| — | — | — | M68 | XTS0505 | XTS0525 | ||||
| — | — | — | M70 | XTS0506 | XTS0526 | ||||
| 2¾” | XTS0511 | XTS0531 | — | XTS0507 | XTS0527 | ||||
| 2½” | XTS0510 | XTS0530 | — | — | — | ||||
| TSR 6 | XTS0600 | 2505 | 563146,40439 | 2¾” | XTS0606 | XTS0626 | M72 | XTS0601 | XTS0621 |
| 3” | XTS0607 | XTS0627 | M76 | XTS0602 | XTS0622 | ||||
| — | — | — | M80 | XTS0603 | XTS0623 | ||||
| 3¼” | XTS0608 | XTS0628 | M85 | XTS0604 | XTS0624 | ||||
| 3½” | XTS0609 | XTS0629 | M90 | XTS0605 | XTS0625 | ||||
| TSR 7 | XTS0700 | 3500 | 786831,30355 | 3½” | XTS0704 | XTS0724 | M90 | XTS0701 | XTS0721 |
| — | — | — | M95 | XTS0702 | XTS0722 | ||||
| 3¾” | XTS0705 | XTS0725 | M100 | XTS0703 | XTS0723 | ||||
| 4” | XTS0706 | XTS0726 | — | — | — | ||||
| TSR 8 | XTS0800 | 4685 | 1053229,90204 | 4” | XTS0804 | XTS0824 | M105 | XTS0801 | XTS0821 |
| 4¼” | XTS0805 | XTS0825 | M110 | XTS0802 | XTS0822 | ||||
| — | XTS0806 | XTS0826 | M115 | XTS0803 | XTS0823 | ||||
